Job completed for Export 220 Volt Inc

Completion date: February 21, 2026

Location: Houston, TX

Why did the customer contact us?

The customer contacted Alif Security LLC because they required a comprehensive life safety and security solution for their commercial facility, Export 220 Volt Inc., located at 3938 Stoney Brook Dr, Houston, TX 77063.

They needed installation and integration of:

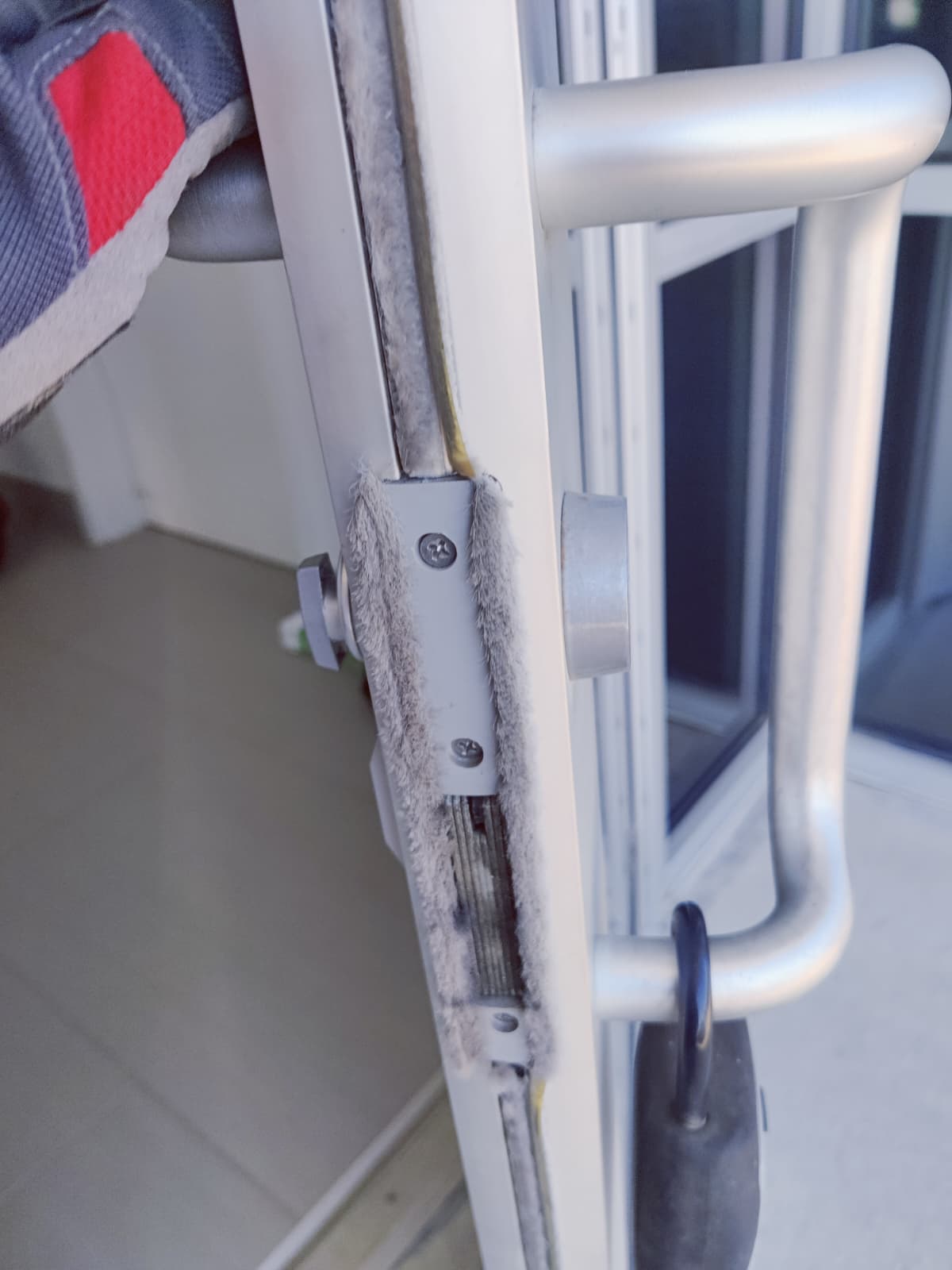

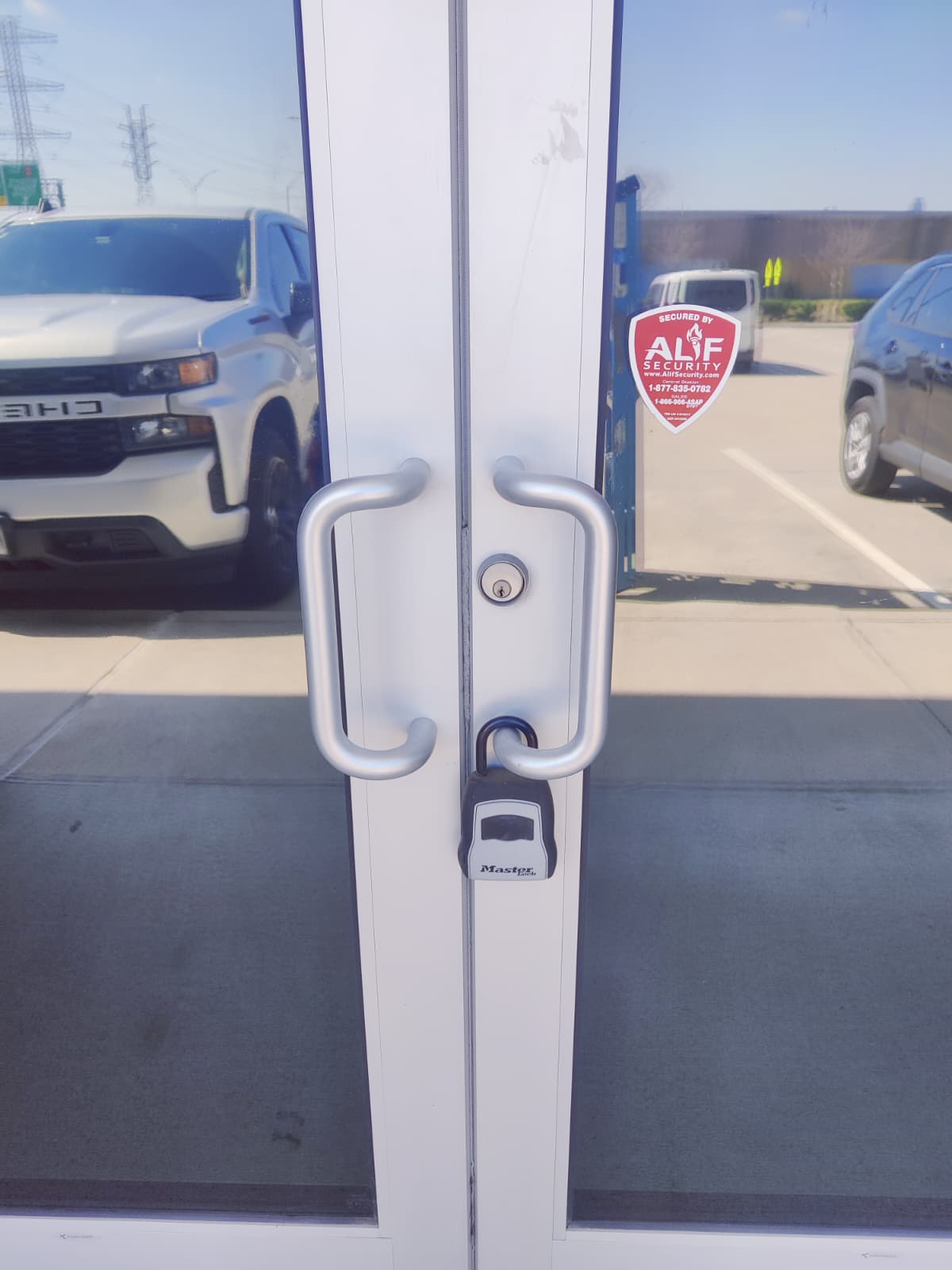

Door Controller (Access Control System)
Fire Alarm System
Security Camera System
Burglar Alarm System
Elevator Monitoring Tie-In
Ongoing Monitoring Services (Fire, Burglar & Elevator)

Solutions provided:

Project Type: Commercial (Industrial / Distribution Facility)

Systems Installed & Integrated: Fire Alarm | Access Control | Security Cameras | Burglar Alarm | Elevator Monitoring

Fire Alarm System Installation:

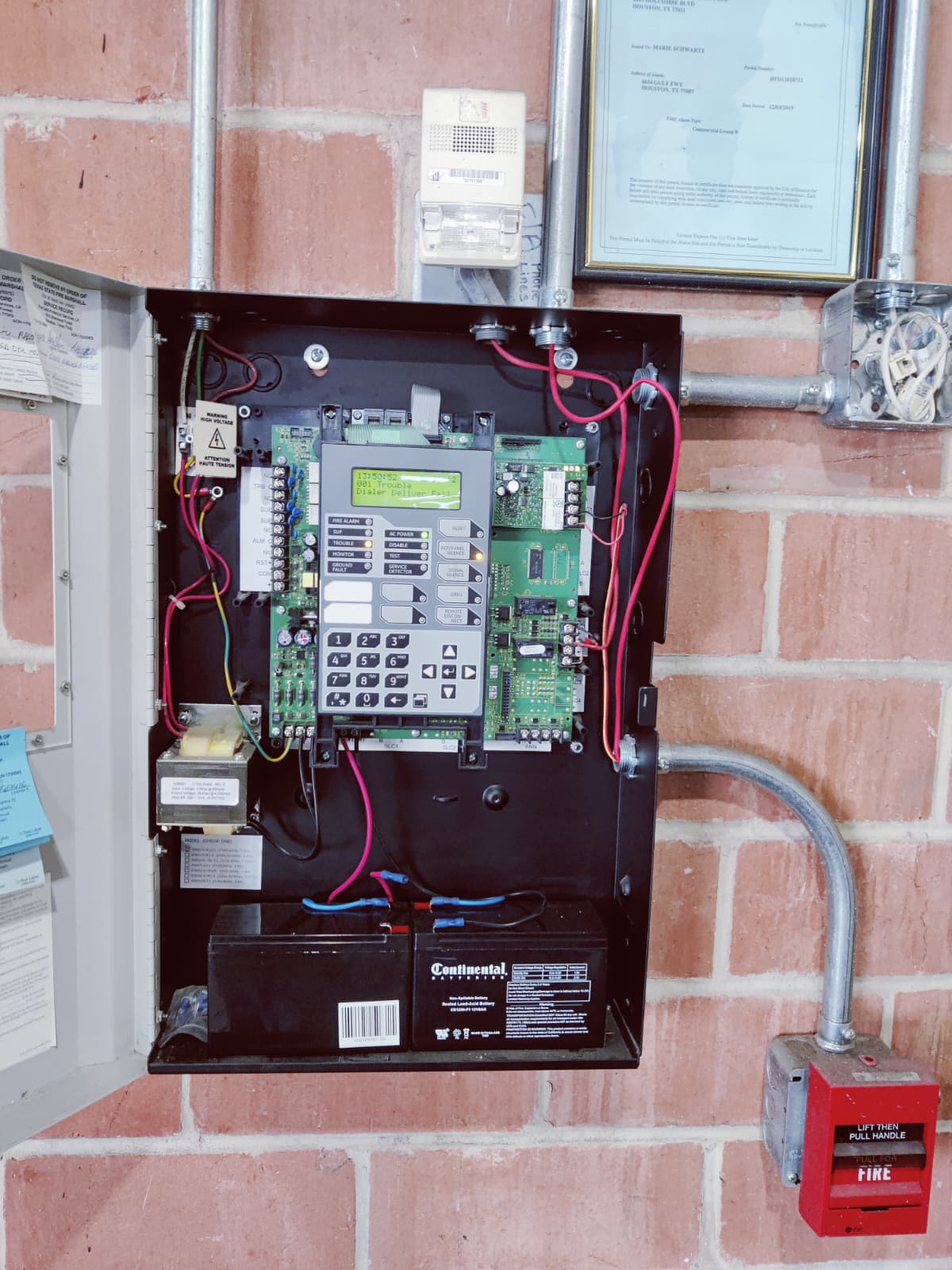

Installed 60-Point Addressable Fire Panel and 142-Zone Fire Control Panel (Dialer/Network, Red Enclosure, 56 VA Transformer)
Installed 16-Point Zone Expander in 340 Enclosure
Installed V-Plex Addressable Smoke Detectors with 6” Bases
Installed 194°F Conventional Heat Detectors
Installed Dual-Action Addressable Pull Stations
Installed Wall & Ceiling Selectable Horn/Strobes (White)
Installed Ceiling Selectable Strobes (White)
Installed Micro Input Modules & Control Relay Modules
Completed Elevator Tie-In integration
Installed NAPCO Radio Communicator and Dialer for IPA-60/IPA4000 for reliable signal transmission
Installed Surge Protective Device with Lockout Kit
Installed Altronix Proprietary Power Supply (1002UDL)
Installed Fire Drawing Box (Red) for system records
Completed wiring using 16/2 & 18/2 Solid Plenum Fire Cable (1000 FT)

Access Control & Burglar Alarm System:
Installed Access Control Keypads (Green LCD, Prox, Door Strike, Shortcut Keys)
Installed Prox Patch (26-Bit Wiegand)
Installed Overhead Door Contacts (Rail & Floor Mount – Potter)
Installed Commercial Surface Mount Door/Window Contacts
Installed OPTEX 360° Ceiling Mount PIR & 70' x 70' PIR Motion Detectors
Installed PIR & Microwave Detectors
Installed Outdoor Waterproof 30W Siren & Self-Contained Siren/Strobe
Configured full burglar alarm integration

Security Camera & Network Infrastructure:
Installed CAT6 Riser Cable for Cameras
Installed MSTR Rack Brand 18-Space Enclosed Rack
Installed 24-Port Cat6e Patch Panel
Completed full installation, activation, and wiring

Planning & Compliance:
Managed Planning and Permitting
Installed system documentation cabinet
Completed full system testing and activation
Configured professional Fire Alarm, Burglar Alarm, and Elevator Monitoring Services

Team members on this project:

Gregry D Hazlett, Mohammed R Bari
